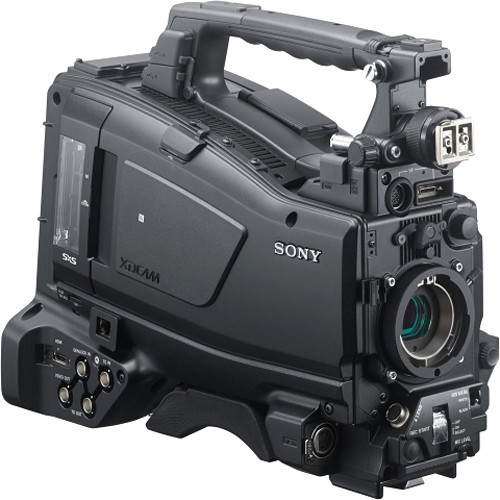

Sony PXW-X400 Shoulder Camcorder (Body Only)

Call for price

Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with HLG option, improved network connectivity, and low power consumption

Add to wishlist

Key Specs

Lens Mount	B4
Sensor Resolution	Effective: 2.07 Megapixel
Image Sensor	2/3″-Type 3-Chip CMOS
Internal Recording Modes	XAVC-I 1920 x 1080p from 1 to 59.94 fps [89 to 112 Mb/s] 1280 x 720 from 1 to 59.94 fps [112 Mb/s] XAVC-L 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] 1920 x 1080p from 1 to 59.94 fps [35 to 50 Mb/s] 1280 x 720 from 1 to 59.94 fps [50 Mb/s] MPEG-2 4:2:2 1920 x 1080p from 1 to 59.94 fps [50 Mb/s] 1280 x 720 from 1 to 59.94 fps [50 Mb/s] AVCHD 1920 x 1080p from 1 to 59.94 fps [24 to 28 Mb/s]
Media/Memory Card Slot	Dual Slot: SxS Single Slot: SD/SDHC/SDXC
Video I/O	1 x HDMI Output 1 x BNC (Composite) Output 2 x BNC (3G-SDI) Output
Battery Type	Sony BP-U Series

Imaging

Lens Mount	B4
Sensor Resolution	Effective: 2.07 Megapixel
Image Sensor	2/3″-Type 3-Chip CMOS
Image Stabilization	No
Built-In ND Filter	Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/2000 to 1/2 Second
Gain	-3 to 42 dB
Shutter Angle	11.25 to 180°
Signal-to-Noise Ratio	62 dB
White Balance	3200 to 6300K Presets: ATW, AWB, Set A, Set B

Video Capture

Internal Recording Modes	XAVC-I 1920 x 1080p from 1 to 59.94 fps [89 to 112 Mb/s] 1280 x 720 from 1 to 59.94 fps [112 Mb/s] XAVC-L 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] 1920 x 1080p from 1 to 59.94 fps [35 to 50 Mb/s] 1280 x 720 from 1 to 59.94 fps [50 Mb/s] MPEG-2 4:2:2 1920 x 1080p from 1 to 59.94 fps [50 Mb/s] 1280 x 720 from 1 to 59.94 fps [50 Mb/s] AVCHD 1920 x 1080p from 1 to 59.94 fps [24 to 28 Mb/s]
Fast-/Slow-Motion Support	Yes
IP Streaming	No

Interface

Media/Memory Card Slot	Dual Slot: SxS Single Slot: SD/SDHC/SDXC
Video I/O	1 x HDMI Output 1 x BNC (Composite) Output 2 x BNC (3G-SDI) Output
Audio I/O	2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output 1 x XLR 5-Pin Microphone Input 1 x XLR 5-Pin Input/Output
Power I/O	1 x Light 2-Pin Output 1 x Hirose 4-Pin (11 to 17VDC up to 1.8 A) Output 1 x XLR 4-Pin (11 to 17VDC) Input
Other I/O	1 x BNC (Timecode) Output 1 x RJ45 (LAN) 1 x 20-Pin Viewfinder 1 x 26-Pin Viewfinder 2 x USB-A 1 x USB-B 1 x 50-Pin 1 x Hirose 8-Pin Control 1 x Lens 12-Pin Control 1 x DE-15/DB-15 (Wireless Receiver) 1 x BNC (Genlock) Input 1 x BNC (Timecode) Input
Wireless	NFC
Global Positioning (GPS, GLONASS, etc.)	GPS

Monitor

Display Type	Articulating LCD
Display Size	3.5″
Resolution	960 x 540

Viewfinder

Type	Removable Electronic (LCD)
Size	3.5″
Resolution	960 x 540

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Automatic, Manual Focus

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Battery Type	Sony BP-U Series
Power Consumption	24 W
Dimensions (W x H x D)	6 x 11 x 13″ / 15 x 27 x 33 cm
Weight	7 lb / 3.6 kg

Packaging Info

Package Weight	12 lb
Box Dimensions (LxWxH)	21.4 x 14.3 x 9.7″
