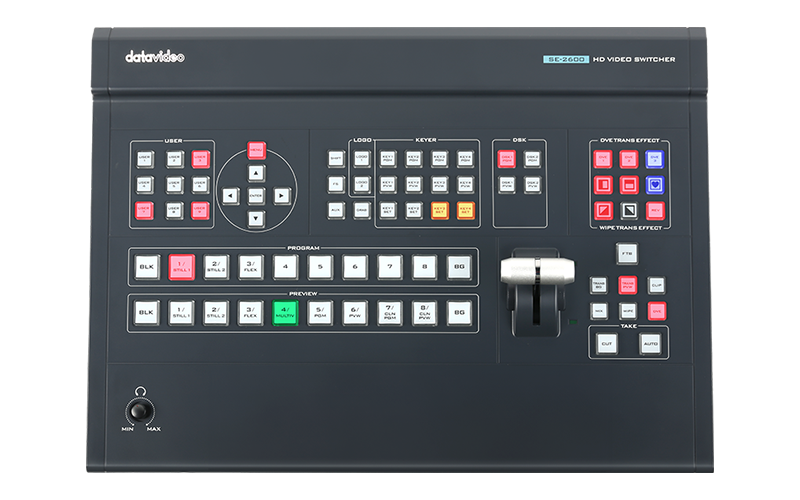

Datavideo SE-2600
The SE-2600 series HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional broadcasting. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for dynamic live events such as e-sports, sports competitions, and concerts, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Datavideo SE-2600 HD 8-Channel Digital Video Switcher
All the Essentials for Pro-Quality Production
The SE-2600 series HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional broadcasting. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for dynamic live events such as e-sports, sports competitions, and concerts, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.
Designed for Easy Installation
SE-2600’s base unit can be easily mounted into a standard 19″ rack. The power button on the front panel makes it easy to turn on and off the switcher.
Professional Switcher for Studio and Outdoor Broadcast Van
Datavideo 2600 HD 8-Channel Digital Video Switcher designed for various applications from OB vans to standalone switchers, allows broadcasters to rapidly initiate live productions on-site with its quick setup and user-friendly interface.
The SE-2600 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
The SE-2600 is designed for medium scale event production. The switcher equips with intuitive and reliable physical buttons.
Be the first to review “Datavideo SE-2600”
Product specs here
HD 8-Channel Digital Video Switcher
Model Number
Video Standard
Video Format
1080p 50/ 59.94/ 60Hz
1080i 50/ 59.94/ 60Hz
720p 50/ 59.94/ 60HzOutput:
1080p 50/ 59.94/ 60Hz
1080i 50/ 59.94/ 60Hz
720p 50/ 59.94/ 60Hz
Video Processing
HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint
Video Input
4 x SDI
4 x HDMI
Mix HD & SD Source
Computer Graphic Interface
Video Output
3 x HDMI
assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
Down-converted Output
Built-in Multi-view Monitoring Out
Analogue Audio Input
1 x Stereo RCA set (L/R)
Analogue Audio Output
Digital Embedded Audio Support
HDMI Input/Output 2 channels
Audio Delay Calibration
A+V Switching
Chromakey
Title Creator
USK
DSK
Picture in Picture
Logo Insertion
Still Store
Effects
Transition Preview
Sync / Reference In/Out
1 x BNC Ref out (loop-through)
Tally Output
PC Remote Control
Camera Control
Built-in Audio Mixer
Storage
Recording File System
Recording File Format
Video Encode
Audio Encode
Streaming Protocol
Firmware Update
Special Features
Free Virtual Set and Stinger transition included
Chassis
Dimension (LxWxH)
Weight
Power
Operating Temp. Range
What’s in the Box
1 x AD Switch DC 12V
1 x AC Cord
